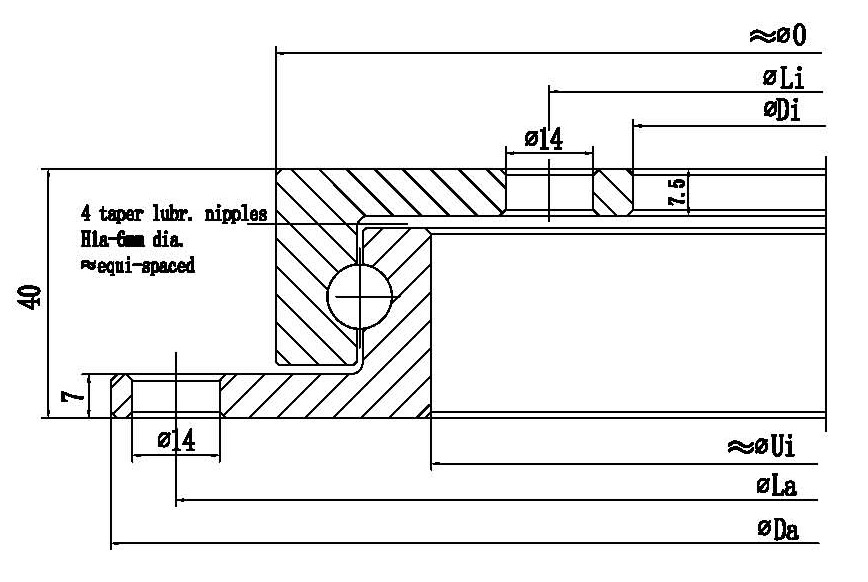

Four point contact ball slewing bearing (with flange) SBI-2501 ()

Back
Request a Quote Consultation
Model
SBI-2501
INA ModelRothe Erde ModelTG ModelBoundary dimensions (mm)Bolt hole diameter (mm)Structure dimensions (mm)Gear Parameters (mm)Basic load ratinge Coa (KN)Weight (KG)
DaDdiHLaLin1n2φ1φ2D1dbhBCDidamzdox
        401 233 40 380 260 8 8 14 φ14 298 318     30.5 30.5 320 322         65 11


?
