angular contact thrust ball bearings double direction

Back

Request a Quote Consultation
Model Old Model
234930 2268130
234430 -
234932 2268132
234432 -
234934 2268134
234434 -
234936 2268136
234436 -
234938 2268138
234438 -
234940 2268140
234440 -
234944 2268144
234444 -
234948 2268148
234448 -
234956 2268156
234456 -
534316MSP 2268160
234460 -

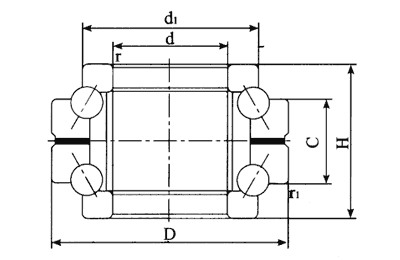

Boundary dimensions (mm)Basic load ratings (KN)Limiting speed (r/min)Weight (KG)
dd1minDHCrsminr1smindyc_Crstc_CorOld_specDesignations
150 190 210 72 36 2 1 116 320 1900 2500 7.26
150 200 225 90 45 2.1 0.6 192 390 1800 2400 12.5
160 200 220 72 36 2 1 - - 1700 2300 -
160 212 240 96 48 2.1 1.1 185 680 - - 14
170 210 230 72 36 2 1 - - 1600 2100 -
170 230 260 108 54 2.1 1.3 221 590 - - 18.5
180 227 250 84 42 2 1 - - - - -
180 248 280 120 60 2.1 0.3 - - - - -
190 237 260 84 42 2 1 - - - - -
190 258 290 120 60 2.1 0.3 - - - - -
200 252 280 96 48 2 1 - - - - -
200 274 310 132 66 3 0.3 - - - - -
220 272 300 96 48 2 1 - - - - -
220 304 340 144 72 3 1 - - - - -
240 292 320 96 48 2 1 - - - - -
240 322 360 144 72 3 1 - - - - -
280 348 380 120 60 2 1 - - - - -
280 374 420 164 82 3 1.5 - - - - -
300 384 420 144 72 3 1 310 1083 - - 53.4
300 406 460 190 95 3 1.5 - - - - -


?
