Light-load Slewing drive

Slewing drive for light duty applications is mainly used in solar power generation.

Model

3"

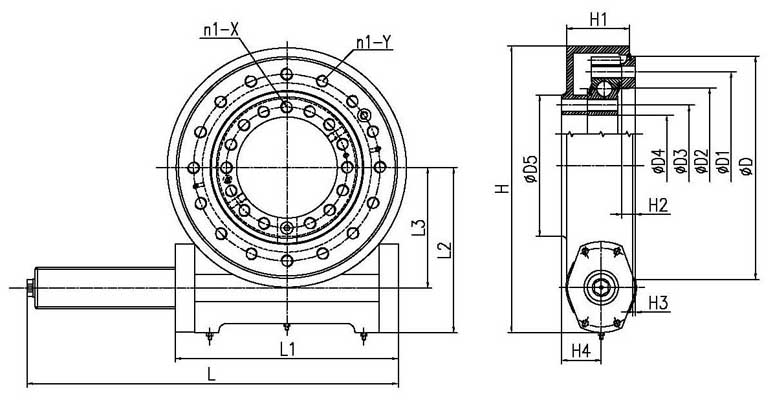

Rated output torque /KN-m	Tilting Moment torque /KN-m	load rating /KN				Gear ratio	Self-locking gears	Boundary dimensions (mm)																	Weight (KG)
Rated output torque /KN-m	Tilting Moment torque /KN-m	Static load rating,axial	Static load rating,radial /KN	Dynamic load rating,axial /KN	Dynamic load rating,radial /KN	Gear ratio	Self-locking gears	L	L1	L2	L3	H2	H3	H4	ΦD	ΦD1	ΦD2	ΦD3	ΦD4	ΦD5	n1-Y	n1-X	H	H1	Weight (KG)
0.2	0.5	30	16.6	9.6	8.4	62:1	yes	346	153	114	80		14.5	60.5	125	100		100		126	6-M10	6-M10	190	109	12
0.3	0.8	76	22.6	13.8	11.8	62:1	yes	361	168	128	93.7	24.6	7	38	161	135	103.5	70	50	120	6-M10	7-M10	219	79	18
1	13.5	133	53	32	28	73:1	yes	398	182	166	132.7	23.4	4.3	42.5	237.5	203.2	163	120.6	98	145	8-M12	10-M12	295	81	23
7.3	33.9	338	135	81	71	61:1	yes	546	314	239	174.1	29	4.4	54.5	316	270	222.5	175	145	204	16-M16	15-M16	411	108	50
9.2	54.3	475	190	114	100	78:1	yes	556	324	285	220	27	4.4	58.5	401.5	358	308.5	259	229	289	18-M16	19-M16	500	110.5	60
10.5	67.8	555	222	133	117	85:1	yes	547	330	303	238	28	3.5	59	435.5	390	342.5	295	265	325	18-M16	23-M16	530	110	73
14.5	135.6	975	390	235	205	102:1	yes	555	338	340	275.3	26	4.6	66	522	479.4	425.5	365.1	324	406	20-M16	20-M16	615	126	110
20.2	203	1598	640	385	335	125:1	yes	678	461	398	333	3.3	4.5	76	616	584.2	525.5	466.7	431.8	532	36-M20	35-M20	732	136.5	158
22.5	271	2360	945	590	470	150:1	yes	678	461	467	401.8	6.2	4.5	78.2	744	675	620	585	512	628.5	36-M20	35-M20	863	133.2	230
