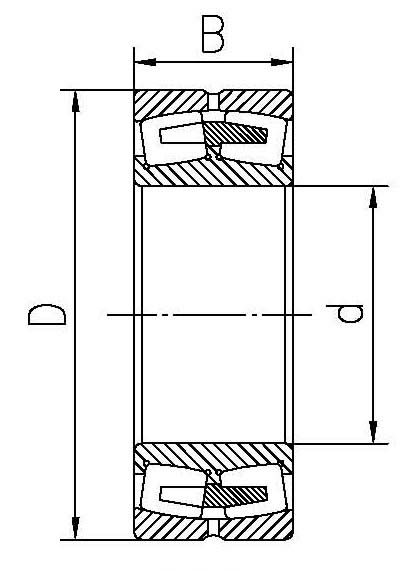

| 外形尺寸(mm) | 額定軸向靜負(fù)荷(KN) | 極限轉(zhuǎn)速(r/min) | 重量(KG) | | d | D | B | rsmin | 動 | 靜 | 脂潤滑 | 油潤滑 |
| 100 | 150 | 50 | 2.1 | 240 | 398 | 2400 | 3200 | 3.3 |
| 100 | 180 | 46 | 2.1 | 318 | 425 | 2200 | 3000 | 5.35 |
| 100 | 180 | 46 | 2.1 | 318 | 425 | 2200 | 3000 | 5.34 |
| 100 | 215 | 73 | 3 | 580 | 735 | 1700 | 2200 | 13 |
| 100 | 215 | 73 | 3 | 580 | 740 | 1700 | 2200 | 13.2 |
| 100 | 215 | 73 | 3 | 580 | 740 | 1700 | 2200 | 13 |
| 110 | 170 | 45 | 2 | 280 | 453 | 2200 | 3000 | 4.1 |
| 110 | 180 | 56 | 2 | 373 | 581 | 1900 | 2600 | 6.1 |
| 110 | 180 | 56 | 2 | 373 | 581 | 1900 | 2600 | 5.9 |
| 110 | 180 | 69 | 3 | 418 | 694 | 1700 | 2400 | 7.2 |
| 110 | 200 | 53 | 2.1 | 397 | 546 | 2000 | 2800 | 7.3 |
| 110 | 200 | 69.8 | 2.1 | 457 | 658 | 1600 | 2000 | 9.6 |
| 110 | 200 | 69.8 | 2.1 | 457 | 658 | 1600 | 2000 | 9.57 |
| 110 | 240 | 80 | 3 | 721 | 901 | 1600 | 2000 | 17.9 |
| 110 | 240 | 80 | 3 | 721 | 901 | 1600 | 2000 | 17.5 |
| 110 | 240 | 80 | 3 | 725 | 963 | 1600 | 2000 | 17.4 |
| 120 | 180 | 46 | 2 | 266 | 463 | 2000 | 2800 | 4.5 |
| 120 | 200 | 62 | 2 | 470 | 733 | 1800 | 2400 | 7.4 |
| 120 | 200 | 80 | 2 | 528 | 856 | 1600 | 2000 | 9.69 |
| 120 | 215 | 58 | 2.1 | 468 | 632 | 1900 | 2600 | 9.3 |
| 120 | 215 | 58 | 2.1 | 464 | 644 | 1900 | 2600 | 9.24 |
| 120 | 215 | 76 | 2.1 | 523 | 753 | 1500 | 1900 | 9.68 |
| 120 | 260 | 86 | 3 | 780 | 1010 | 1400 | 1800 | 21.7 |
| 120 | 260 | 86 | 3 | 788 | 1030 | 1400 | 1800 | 22.3 |
| 130 | 230 | 64 | 3 | 550 | 790 | 1800 | 2400 | 11.4 |
| 130 | 230 | 64 | 3 | 558 | 795 | 1800 | 2400 | 11.5 |
| 130 | 230 | 80 | 3 | 588 | 872 | 1300 | 1700 | 14.8 |
| 130 | 280 | 93 | 4 | 920 | 1193 | 1300 | 1700 | 27.6 |
| 130 | 280 | 93 | 4 | 963 | 1295 | 1300 | 1700 | 28.7 |
| 140 | 210 | 53 | 2 | 410 | 700 | 1800 | 2400 | 6.2 |
|
